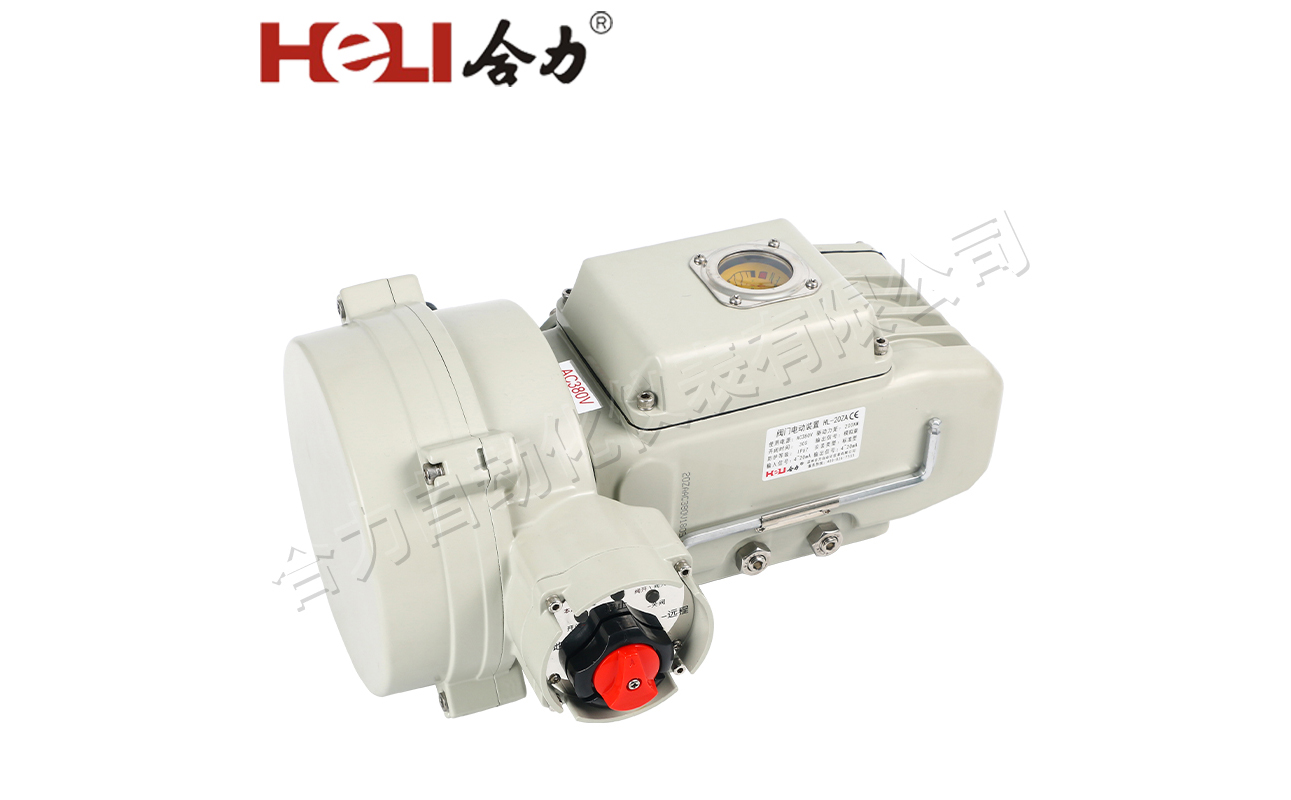

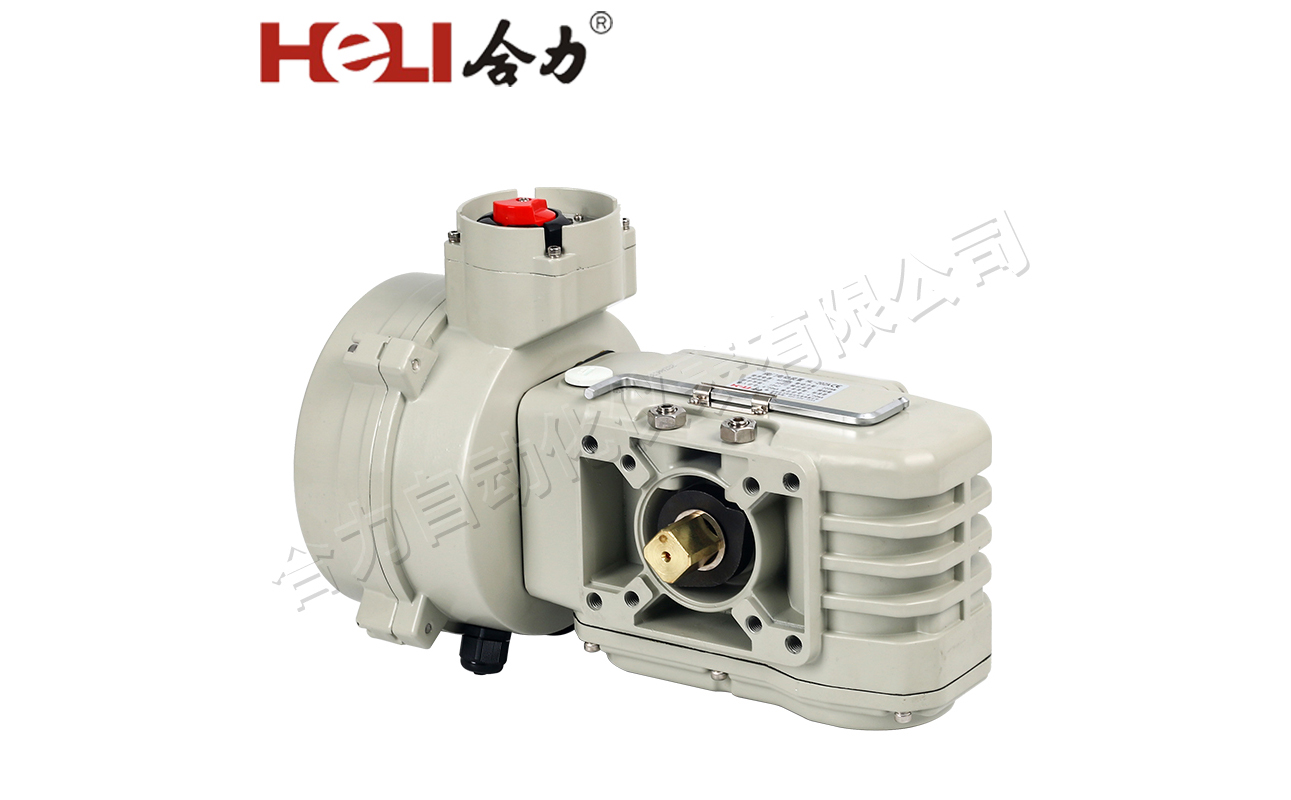

帶本地控制器的HL執(zhí)行機構
Technical parameter
Performance | Model | HL-05ZA | HL-10ZA | HL-20ZA | HL-50ZA | HL-100ZA | HL-200ZA | HL-400ZA | HL-600ZA |
Power | AC110V、AC220V、AC380V | ||||||||
Motor power | 10W | 23W | 40W | 90W | 100W | 100W | 200W | 200W | |
Rated current | 0.24A | 0.32A | 0.48A | 0.92A | 1.0A | 1.2A | 2.1A | 2.1A | |
Output torque | 50Nm | 100Nm | 200Nm | 500Nm | 1000Nm | 2000Nm | 4000Nm | 6000Nm | |
Action time | 30S | 30S | 30S | 30S | 50S | 100S | 100S | 150S | |
Rotary angle | 0-90° | ||||||||
Input signal | 4~20mADC、1~5VDC、0-10VDC（Others would be set before sale） | ||||||||
Output signal | 4~20mADC（Others would be set before sale） | ||||||||
Voltage- withstandingvalue | DC12V、DC/AC24V；500VAC/1min | ||||||||
Insulted resistance | DC12V、DC/AC24V；100VAC/300VDC | ||||||||
Enclosure protection | IP-67 | ||||||||
Surrounding temperature | -25℃-60℃（The other temperatures can be customized） | ||||||||
Installation angle | Any angle | ||||||||
Case material | Aluminium alloy die-casting | ||||||||
Optional function | Overtorque protection、Heater space、Overheat protection | ||||||||
Product color | milk white (other colors customized) | ||||||||
